PROLINE WATER PUMPS W/ PROTECTIVE CAGES

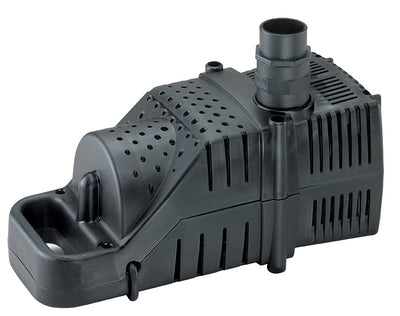

PROLINE BY PONDMASTER HY-DRIVE PUMPS are unique, high-capacity pumps designed specifically for use in larger pond installations. The Hy-Drive design combines the benefits of magnetic and direct drive technologies to deliver great performance and high efficiency in an extremely quiet, low maintenance package. The heavy-duty polypropylene enclosure has a built-in carry handle and effective molded-in debris screen. Hy-Drive pumps can be positioned vertically or horizontally and can be used as a submersible pump or as an inline, external pumping source.
Case Dimensions: 6"D x 6.125"W x 12.5"H, 20' cord
Pump Dimensions: 8"L x 5"W x 6"H
Inlet: accepts 1" threaded fittings
Outlet: accepts 1" threaded fittings
Maximum Head: 17' shut-off
Maximum Flow: 1750 gph
Power: 110-125 Watts
Mfg. Warranty: 3 year limited warranty
1600 HY-DRIVE - ITEM# 02663
- Max. Watts/Amps 120/1.0
- Inlet 1"
- Outlet 1"
- Cord Length 20'
- Dimensions (L x W x H) 13" x 6 3/8" x 6"
| PM NAME |
PM ITEM# |
Watts |
Flow at 1' |
Flow at 3' |
Flow at 5' |
Flow at 7' |
Flow at 10' |
Flow at 15' |
Flow at 20' |
Flow at 25' |
Shut-Off (Feet) |
| PLHD 1600 |
02663 |
120 |
1700 |
1575 |
1400 |
1250 |
1000 |
375 |
- |
- |
17' |
